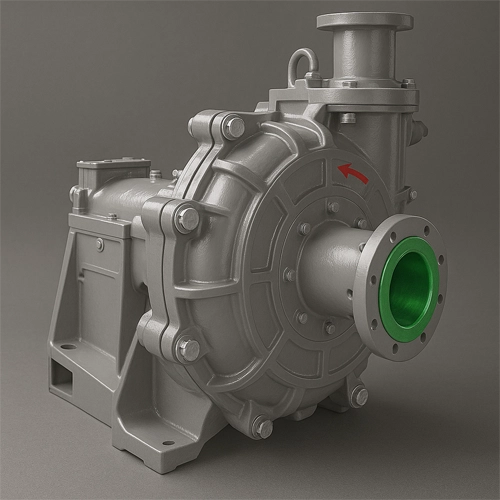

Medium to heavy duty high head Slurry Pump – SPL Series
- Designed for high head applications.
- SPL is widely used in coal preparation applications
- Direct connected drive are always optional by trimming impeller to appropriate diameter and to get performance just in need.
- The pumps can be used in sea water handing applications after specialim-provement, and can be used in series under 3.6MPa
- Single stage, single suction, overhang shaft, centrifugal, double casing horizontal pump.
- Casing-Made of ductile Iron, ribs help casing to stand high pressure
- Wet Ends-Impellers, liners, volutes are made of high-chrome alloy or ceramics to resist wear, corrosion, shock or brush.
- Special structure design to fit in high head applications where more than one pump in series are needed.
- High efficiency, lower power cost
- Oil lubrication to lower bearing temperature, reduce down time.
- Impellers are designed to be trimmed multiple times to fit motor speed, coupling connection between pump and motor help pump running more stable and reliable.
- Seal: expeller + packing seal and mechanical seal are optional, to reduce leakage risk.
