Fire Pump (Diesel) – 250 GPM
Compact, skid-mounted fire pump package rated at 250 GPM, assembled to NFPA 20 recommendations and supplied ready for site connection.
Key features
-
CORVEX main fire pump with high-speed shaft, NFPA 20 performance, mechanical seal, and semi-rigid coupling.
-
Stainless-steel vertical multistage jockey pump for pressure maintenance.
-
Ultra-compact layout on a structural-steel skid.
-
High pressure reserve to handle flow spikes.
-
Fully automated emergency start with integrated pressure sensors.
-
Programmable LED control panel tailored for CORVEX fire systems.
-
UL primary valves, pressure gauges, and manifold/connection piping—site-ready.
-
Optional scheduled maintenance alarms.

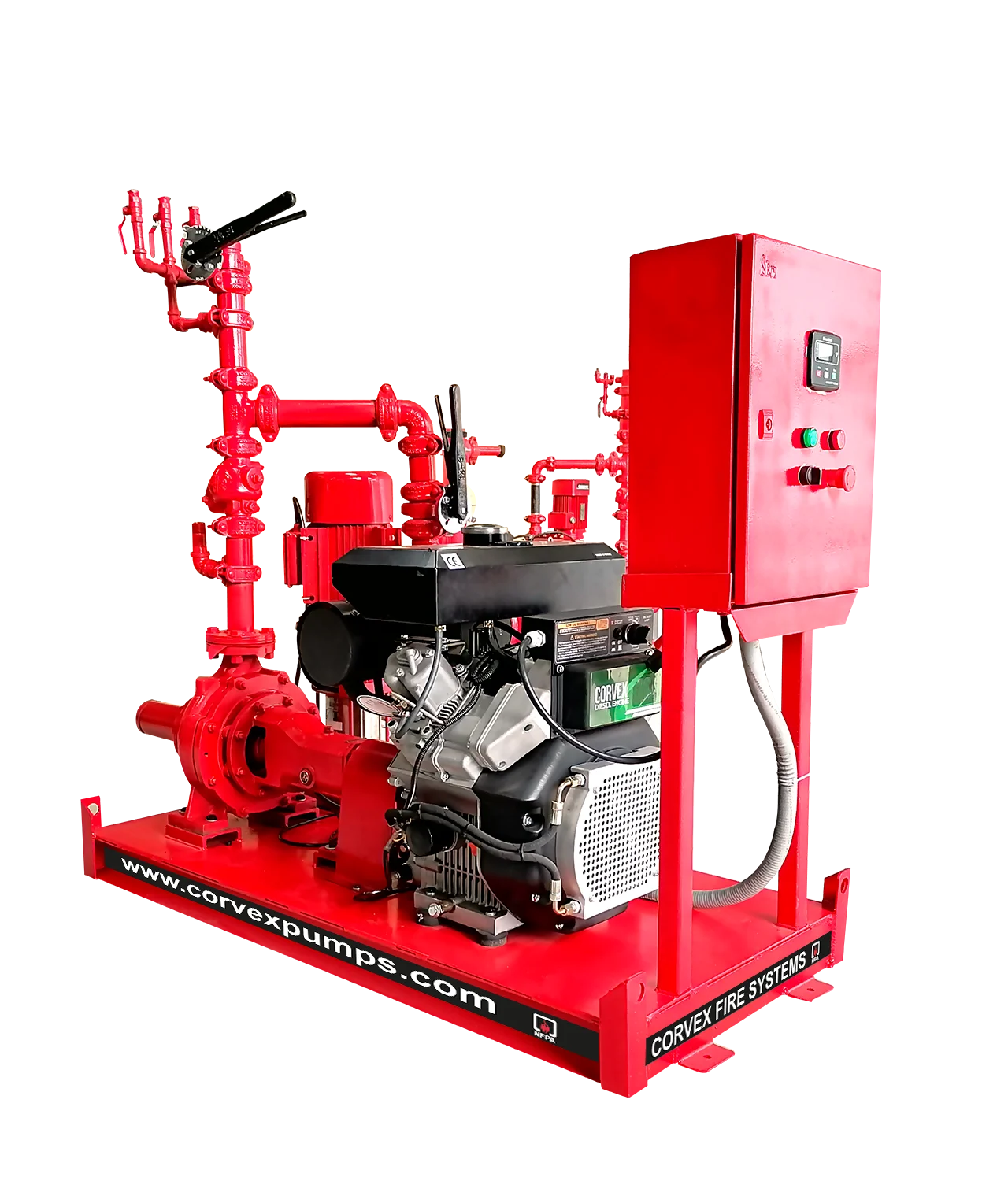

The CORVEX 250 GPM packaged fire pump system is an integrated, ready-to-install solution engineered around NFPA 20 good practices. Each package combines a diesel-driven main pump for reliable emergency flow with a stainless-steel, vertical multistage jockey pump to maintain system pressure during normal operation. Built on a compact structural-steel skid, the assembly is pre-piped and pre-wired with UL primary valves, pressure gauges, and connection manifolds to minimize installation time.
A programmable LED control panel manages fully automatic start/stop based on pressure sensing, while maintenance scheduling and alarm functions help ensure readiness. The result is a robust, space-efficient fire protection package designed to deliver dependable performance for industrial, commercial, healthcare, and civil facilities.
